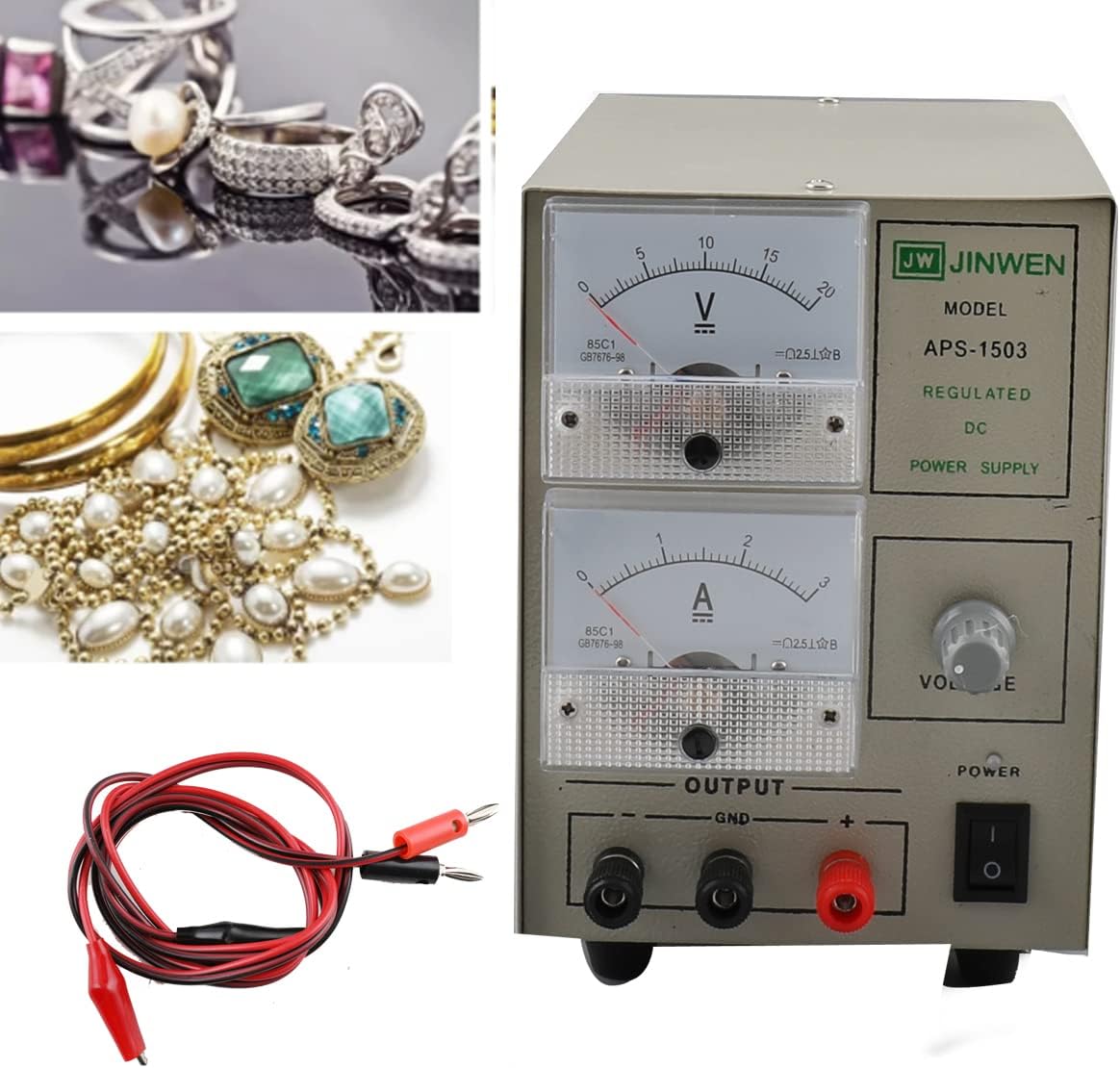

TABODD Portable Jewelry Plating Machine, Electroplating Jewelry Plating Machine Gold Silver Electroplating Equipment with Voltage and Current Display

Price: $40.00
(as of Apr 03, 2025 20:53:04 UTC – Details)

Description:
Model: 1503
Product size: 162*170*117 (mm)

Instructions:
1: Platinum plating method
Positive (+): titanium mesh
Negative (-): clip jewelry
Voltage: 3-4 volts
Temperature: 30-40℃
The electroplated items need to be shaken at the beginning, the recommended gold plating time: 90-120 seconds

2: Gold plating method (14K.18K.24K)(also can be work on Gold/platinum gold/stainless steel)
Temperature: 70℃-80℃
The electroplated items need to be shaken, and the recommended gold plating time is: 20-50 seconds
Accessories for electroplating: beaker, titanium mesh, gold plating machine, water line, electric furnace, thermometer

3: Silver plating method
Positive (+): titanium mesh
Negative (-): clip jewelry

Steps:
1: Follow the electrolytic cleaning salt procedure to clean first
2: After electrolysis, 3 beaker cleanings are required
3: 54 grams of silver salt 54% 500cc distilled water

Temperature: 40℃，Voltage: 3V,
The electroplated items need to be shaken, the recommended electroplating time: 3-5 seconds

Electroplating steps:
S 1: Polished with cloth wheel and sander;
S 2: Ultrasonic cleaning machine plus dewaxing water (heating) cleaning;
S 3: Polishing with a polishing machine;
S 4: Steam cleaner cleaning;
S 5: Electrolysis and electroplating procedures completed.

Content:
1* electroplating machine
2* conductive wire

PREMIUM QUALITY – The conductive connecting wire is made of high-quality materials, which is comfortable to the touch and highly conductive. And the voltage is adjustable, you can adjust it as needed.
HIGH EFFICIENCY & PROTECTION FUNCTIONS – The electroplating surface treatment power supply has high efficiency, and has the functions of automatic voltage regulation, steady current, overvoltage and overcurrent protection of thyristor rectifier, and undervoltage and phase loss protection functions.
EASY TO CARRY – This small size 1503 jewelry electroplating machine is small, light and easy to carry.
APPLICATION – It has obvious effect on various kinds of plating (copper, nickel, chromium, gold, silver, electrophoresis, etc.), the coating is uniform, especially for irregularly performing workpieces (less plating time).
PACKAGE INCLUDES – One electroplating machine and 2x conductive wires.
